Vimek 404 SE

The Vimek harvester

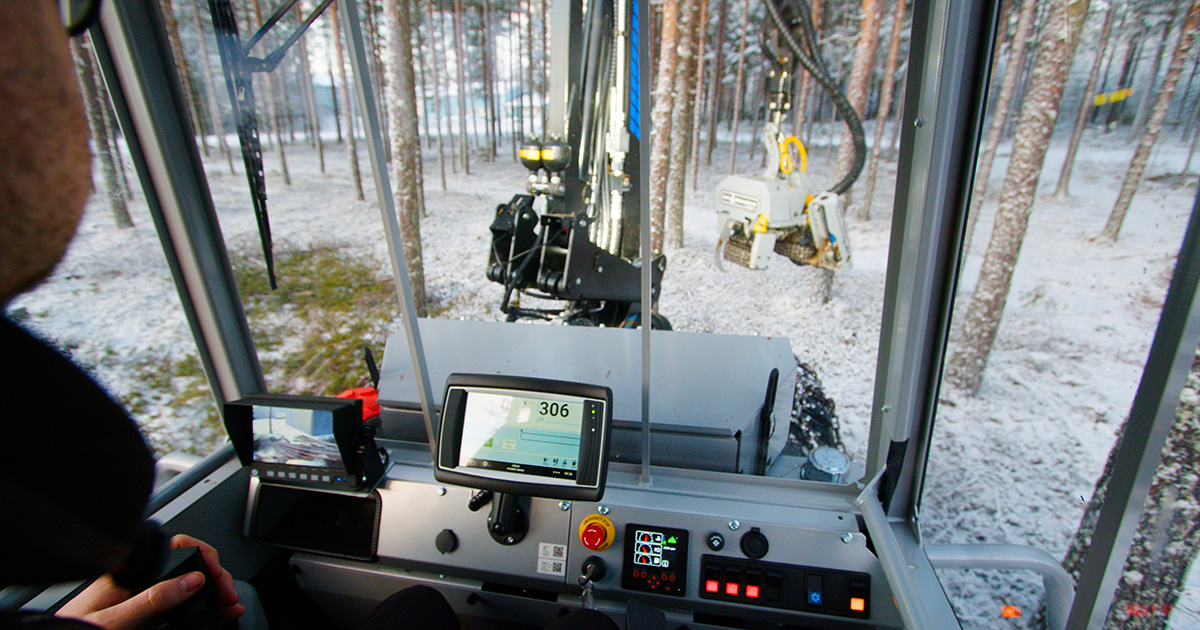

A new generation Vimek harvester equipped with new powerful Common Rail engine. The steering front axle offers alternative width of the machine. Improved environment for the operator thanks to rubber mounted cabin, new and modern display and mini joysticks as options contribute to a comfortable cabin.

Low fuel consumption and low investment costs for good total economy. Extremely easy to manoeuvre, thanks to the unique dual steering function. Vimek 404 SE can also be equipped with different crane tip attachments – for example Vimek clam shell bucket for ditch clearing or our felling head for brush clearing under electric power lines.



Vimek 404 SE
Technical specifications
Motor CAT C2,2T CRDI 50 kW
Transmission Hydrostatic / mechanical
Ground clearness 40 cm
Dimensions
Axle width 2,10 m
Width 1,80 m or 2,05 m
Weight 4,400 Kg



Crane
Model Vimek - Mowi 2046
Max. reach 4,60 m

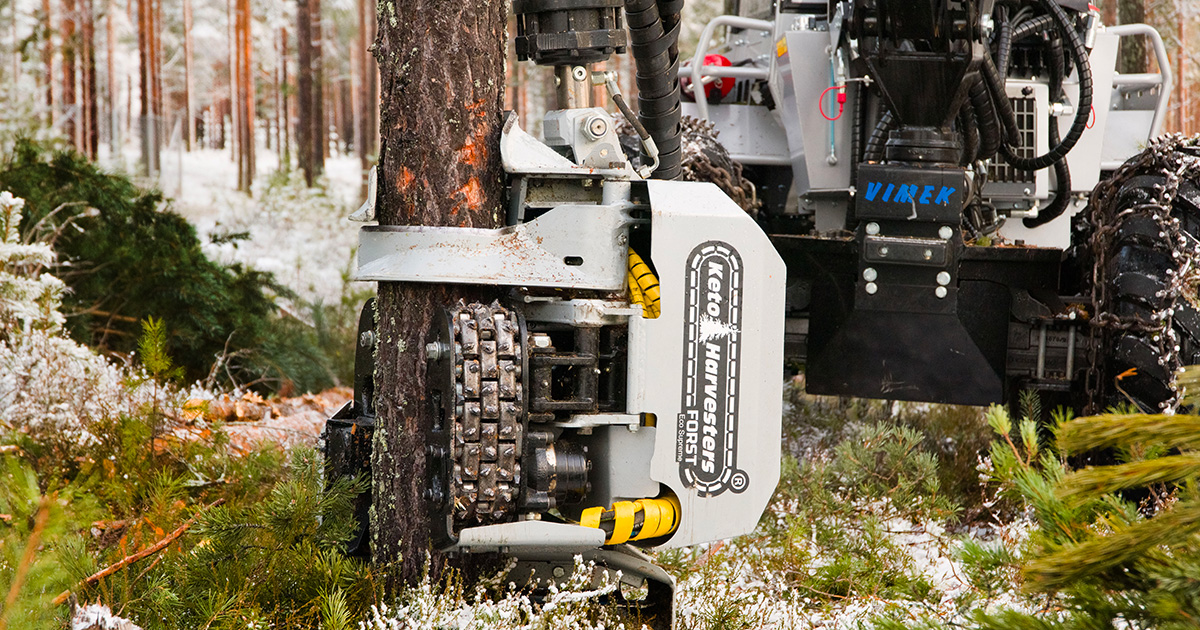

Harvesting head
Model Keto Forest Silver Xtreme
Max. cutting diameter 300 mm
Weight 269 kg
Motor 10 cc


Bucking system
Models DASA H50/H60/H70


Accessories
Clamshell bucket
Weight 130 kg
Max. opening 1300 mm
Speed 50 mm
Volume 125 liters
Technical data click here
Vimek C12 - Scrubber
Weight 160 kg
Diameter 795 mm
Speed 1100rpm
Technical data click here
