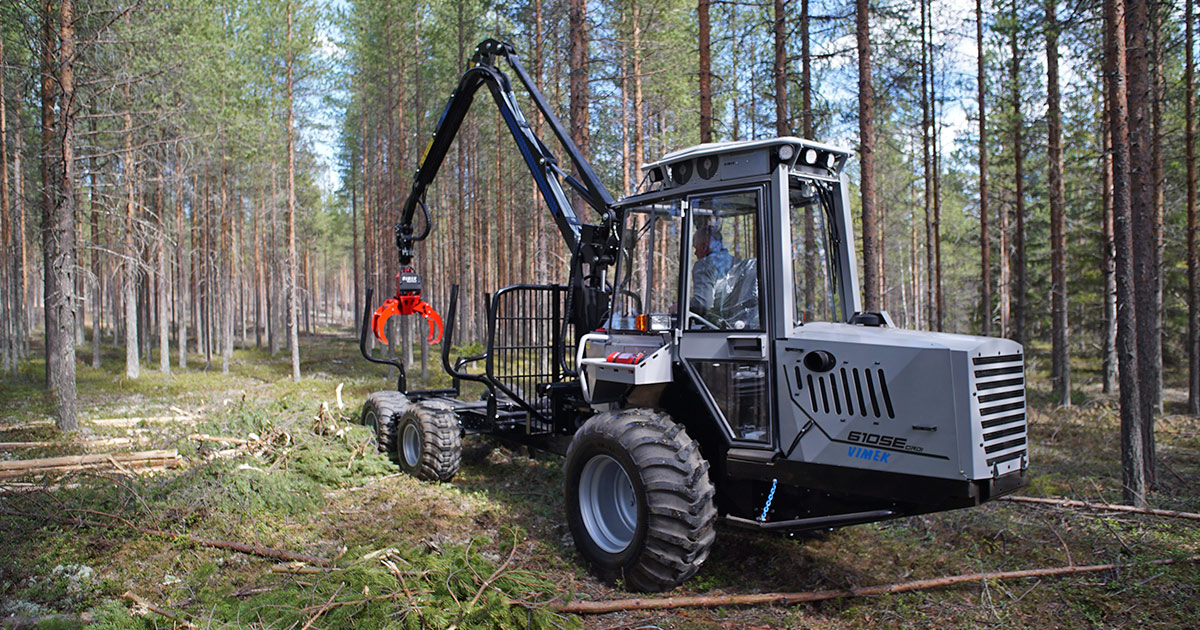

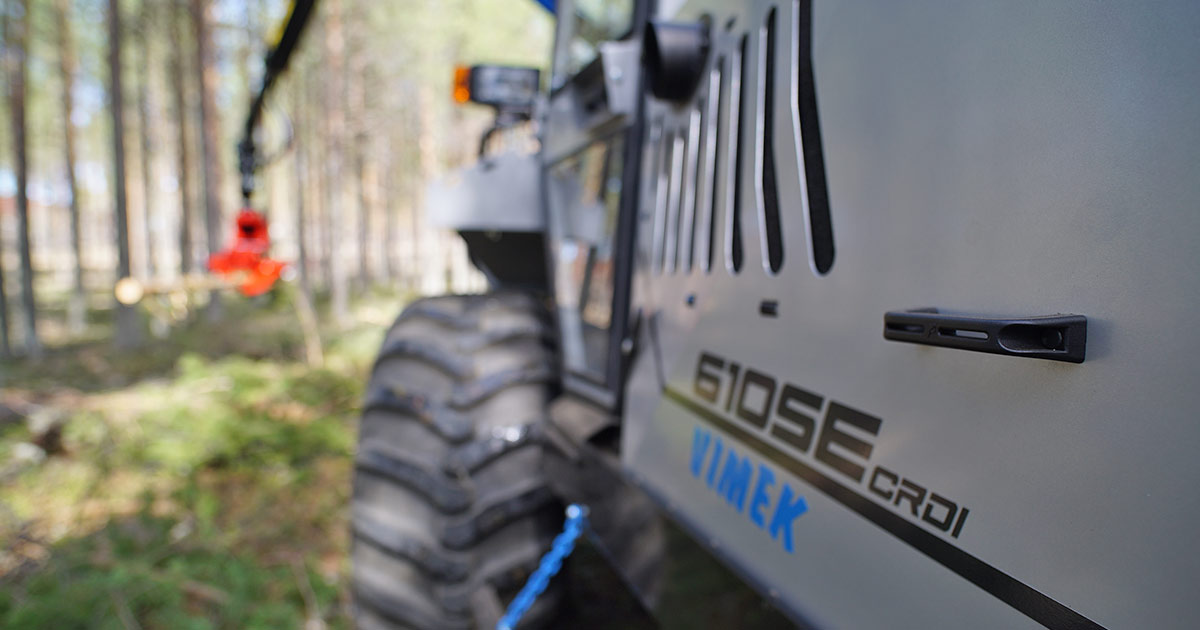

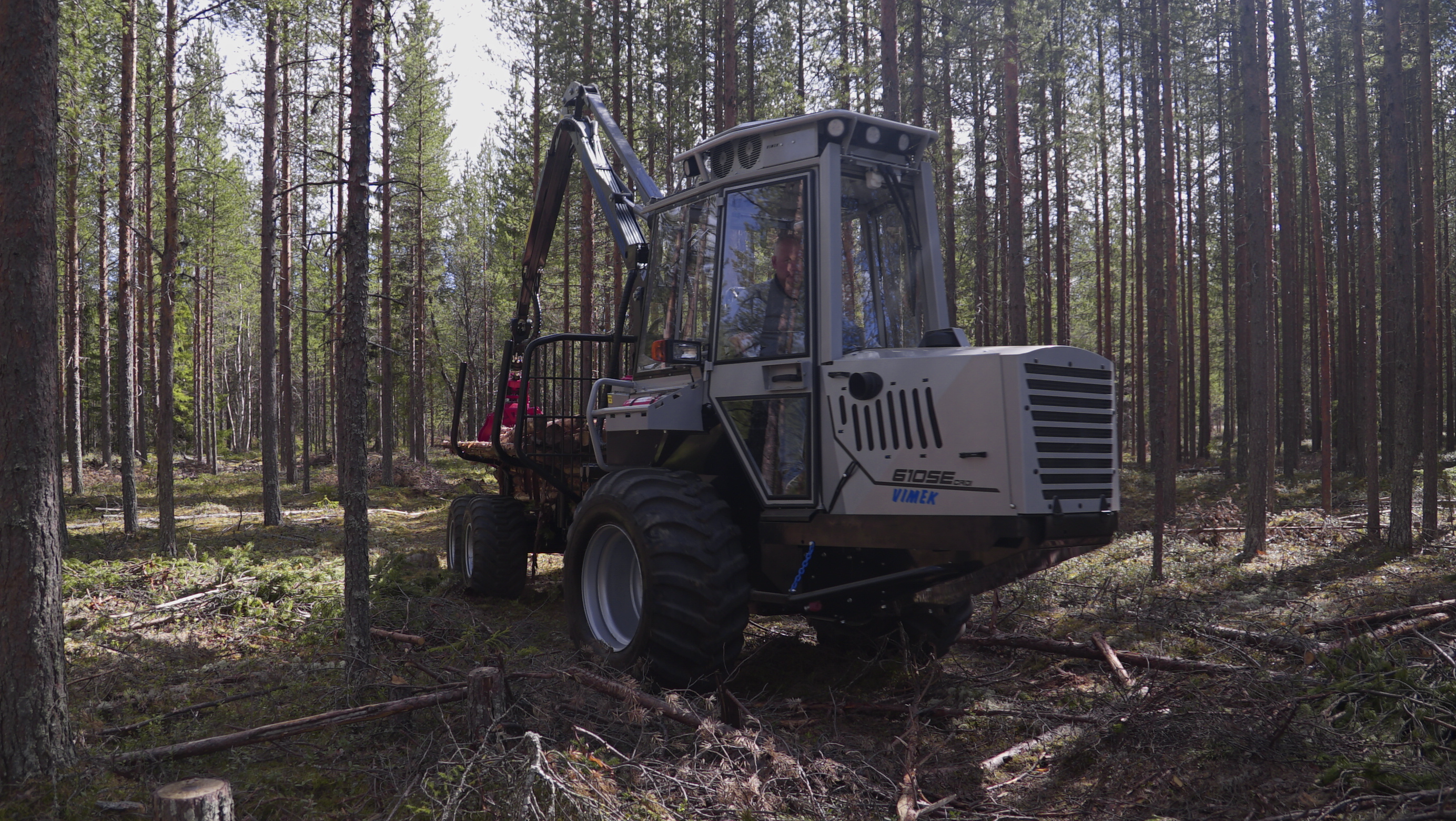

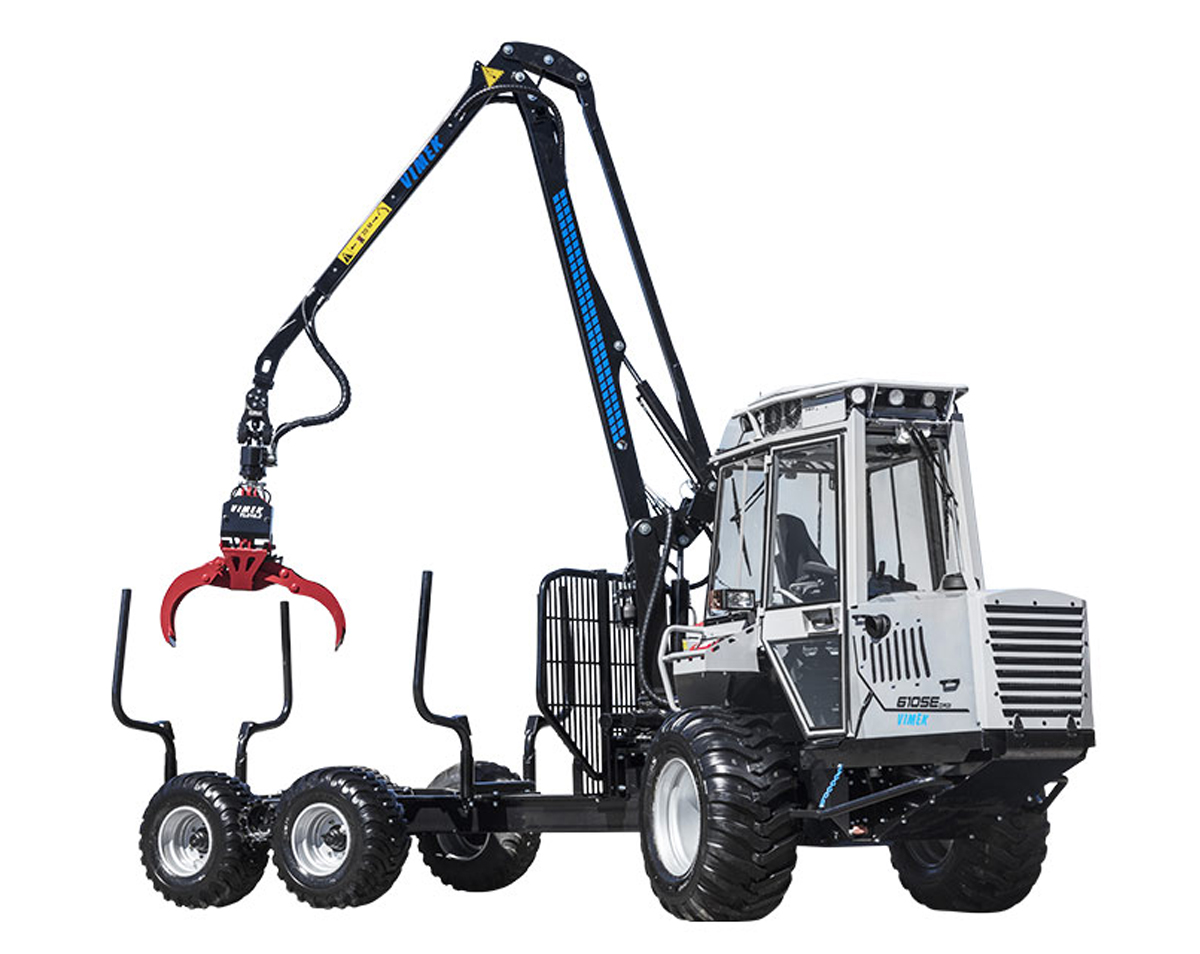

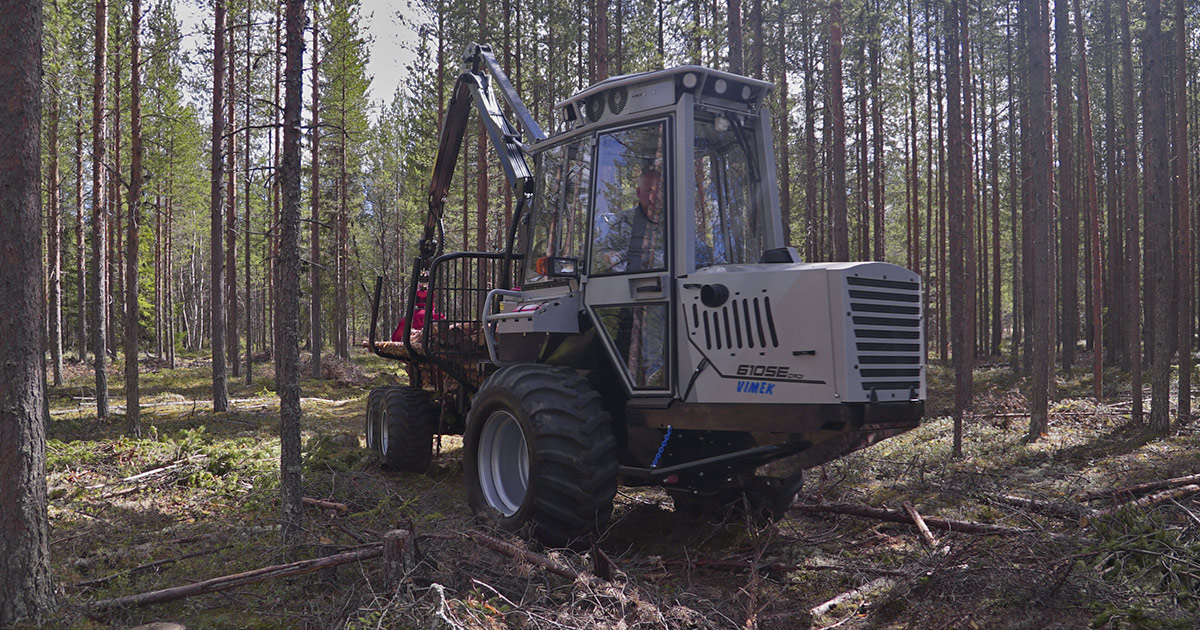

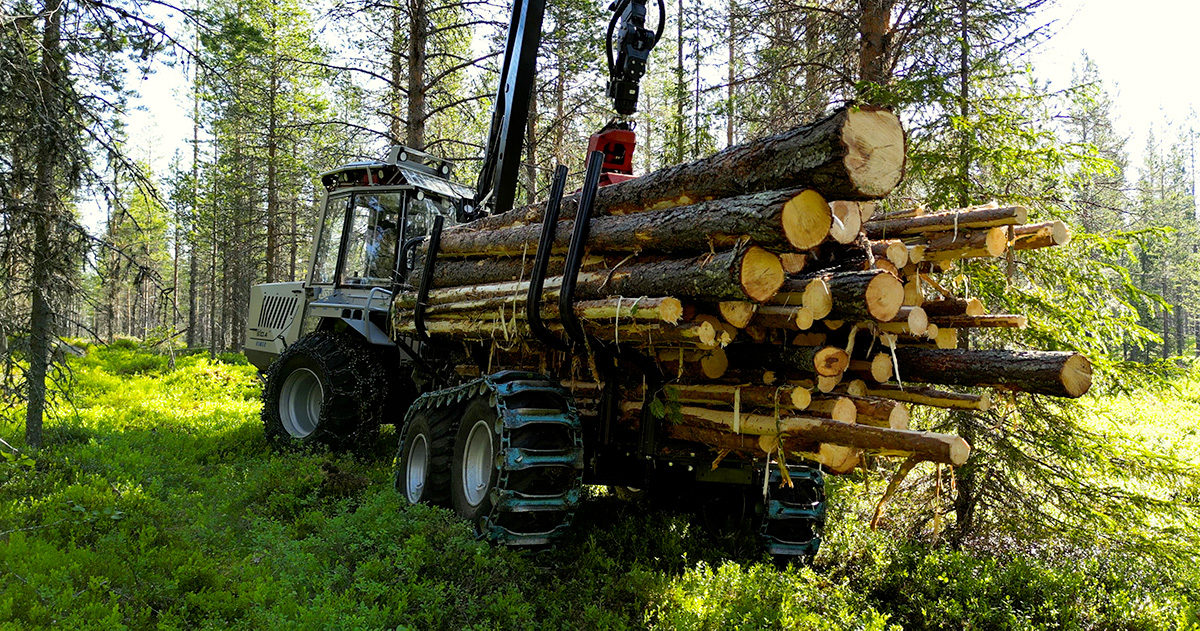

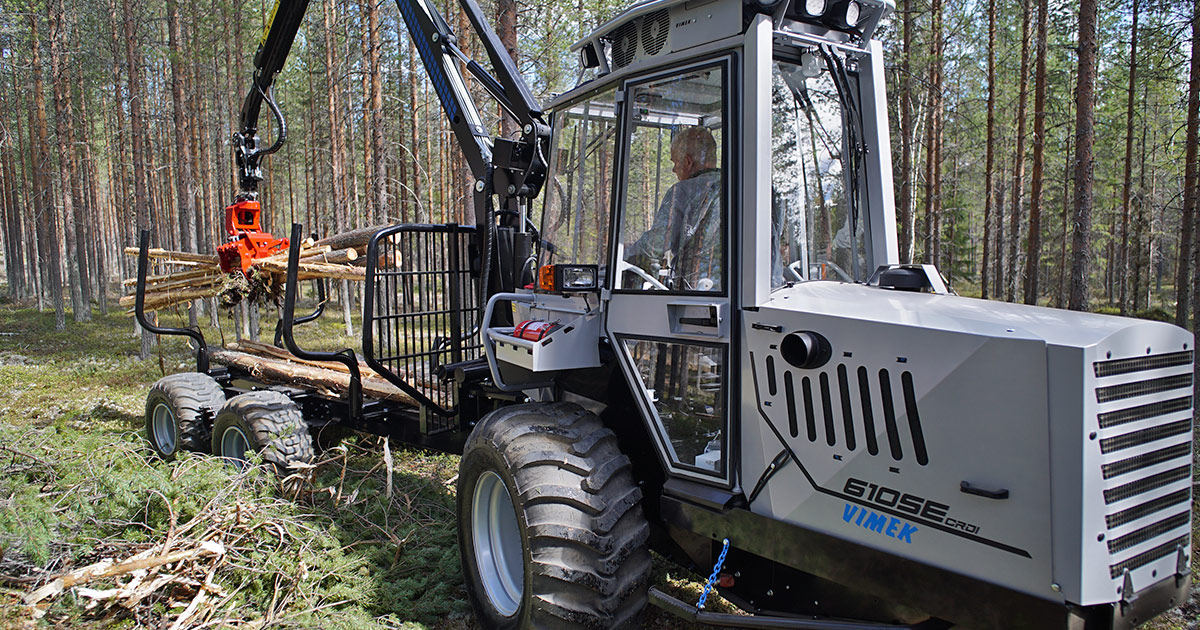

Vimek 610 SE

Vimek's most powerful forwarder

Vimek 610 SE is our most powerful forwarder with 5,000 kg loading capacity, equipped with the new powerful Common Rail engine at 68 Hp Stage 3B/4 Final, modern hydrostatic transmission from Bosch Rexroth in combination with our well known trailer and crane.

In the Vimek 610 SE we have been able to combine an engine and transmission to offer high efficiency, productivity, performance. All this together with low fuel consumption, makes a cost effective machine.


Vimek 610 SE
Technical specifications
Motor CAT C2,2T CRDI 50 kW
Transmission Hydrostatic / mechanical
Ground clearness 40 cm
Dimensions
Length Standard 6,90 m (load length 3,30 m, loading area 1,85 m²)
Short 6,70 m (load length 3,00 m, loading area 1,85 m²)
Long 7,60 m (load length 4,00 m, loading area 1,65 m²)
Width 1,90 m or 2,00 m
Weight incl. crane 4,700 Kg
Loading capacity 5,000 kg

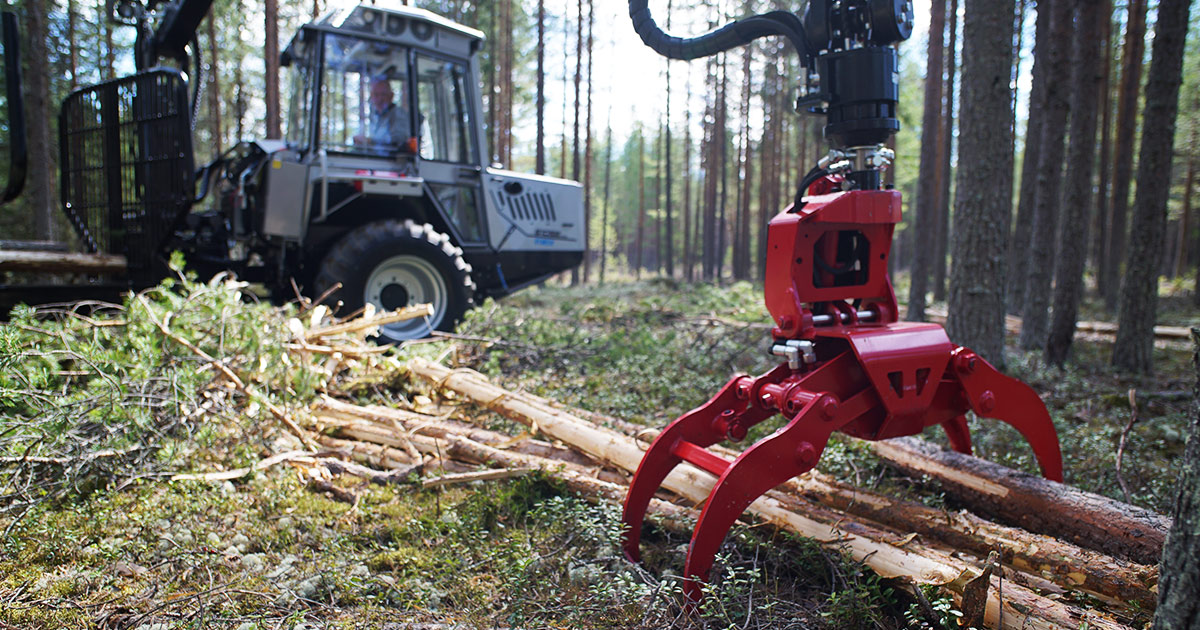

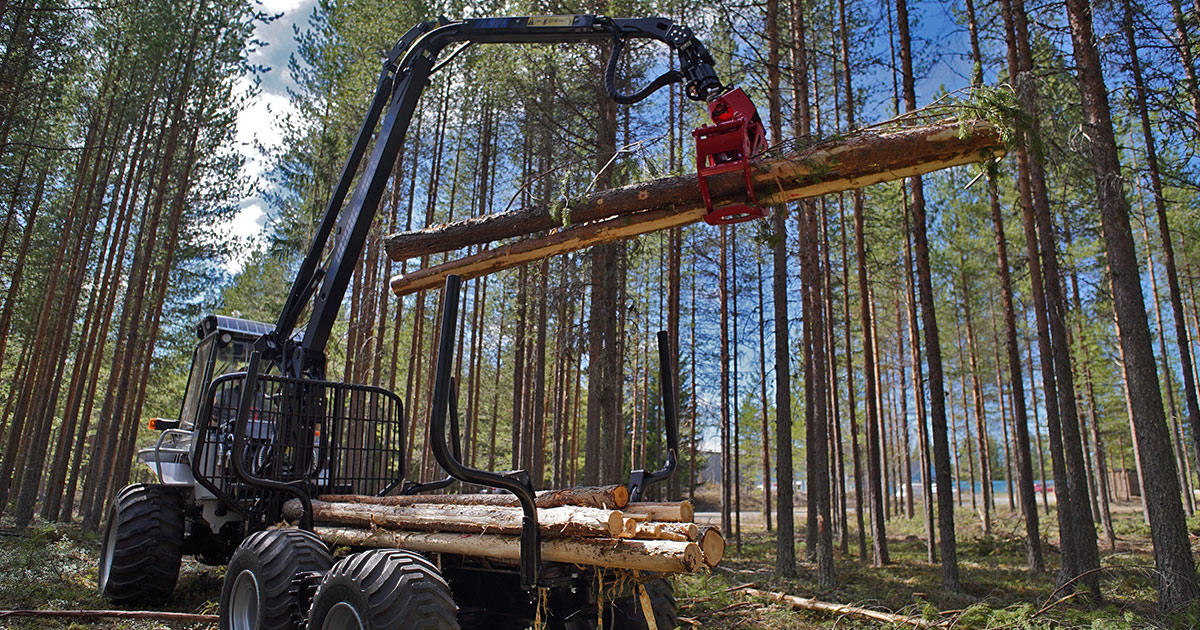

Crane
Model Vimek - Mowi P25
Max. reach 5,20 m
Lifting capacity 5,20 m, 400 kg
Gripping area 0,16 m²



Accessory
Clamshell bucket
Weight 130 kg
Max. opening 1300 mm
Speed 50 mm
Volume 125 liters
