1. Vimek 470 aspect ratio 952 792

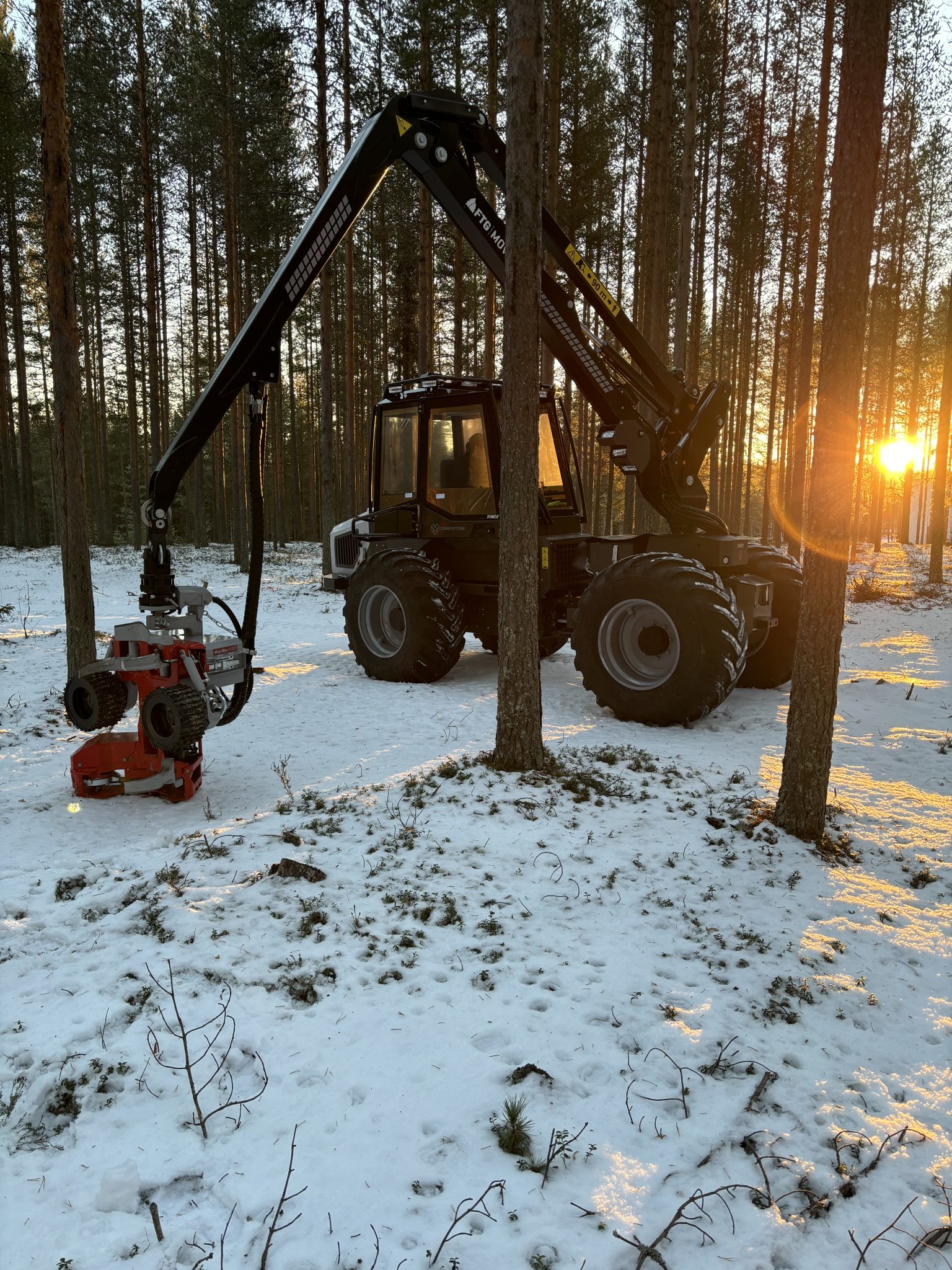

Vimek 470

Vimek’s largest harvester

Discover the Vimek 470 – a modern harvester designed for thinning, combining power, agility, and operator comfort in every detail.

Built for sustainable forestry – delivering high productivity with minimal ground impact.

2. Vimek 470 working environment scaled aspect ratio 1000 700

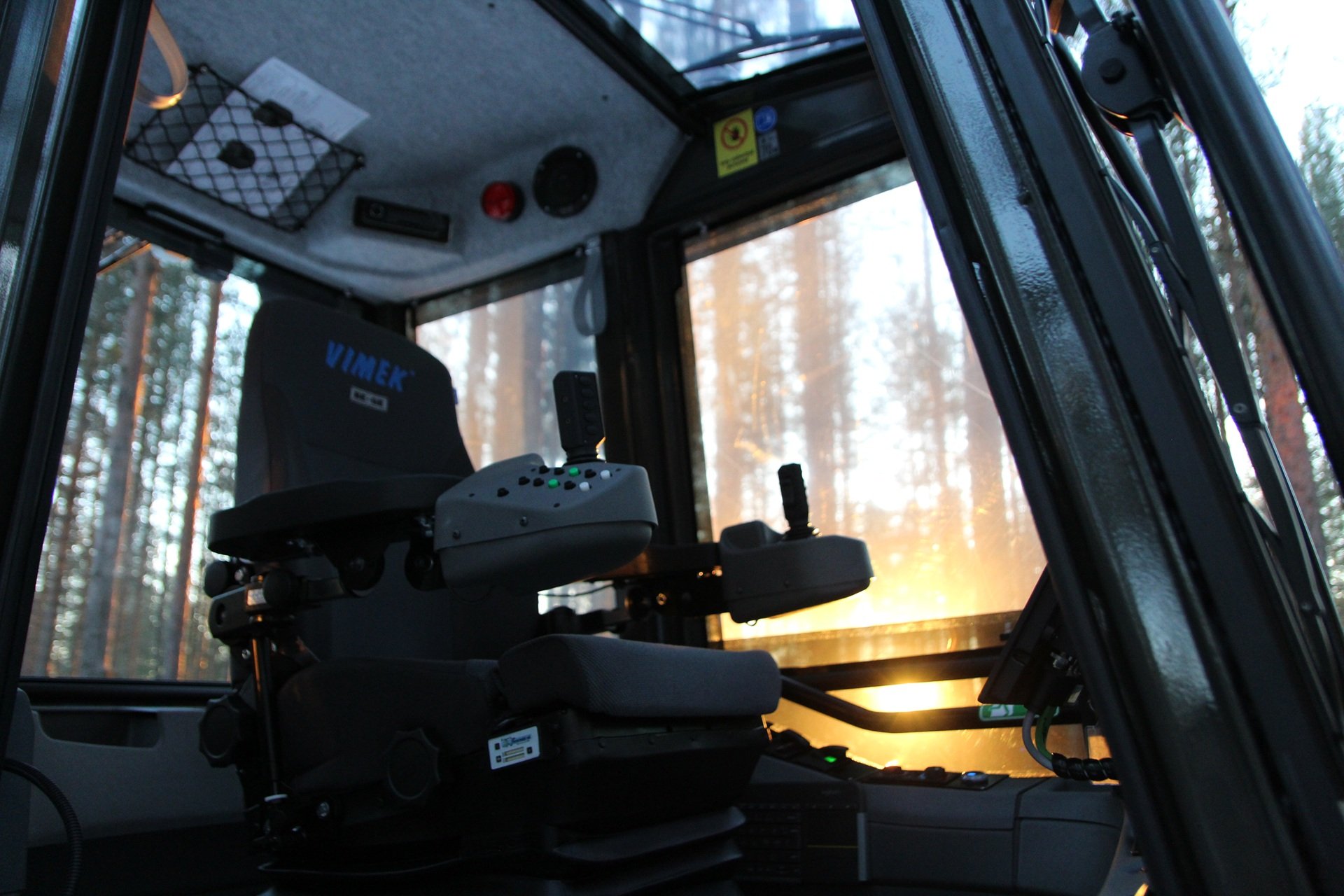

Working environment

The NG platform offers a spacious and comfortable cab, designed with a modern interface that makes it easy and fun to drive.

The low seating position provides excellent visibility under the treetops and helps reduce the whole-body vibrations.

A large roof window ensures optimal visibility upwards, creating a clear view for precision work even in dense stands.

3. Vimek 470 Engine and transmission scaled aspect ratio 1000 700

Engine and transmission

The Vimek 470 is powered by a four-cylinder turbo diesel engine, delivering strong performance and meeting the latest emission standards.

The hydrostatic-mechanical transmission, combined with an optimized driveline, ensures low fuel consumption, making forestry operations sustainable.

With the Vimek 470, you can focus on the work, without the need for adding def-fluid.

4. Zoom in on crane and harvester head scaled aspect ratio 1000 700

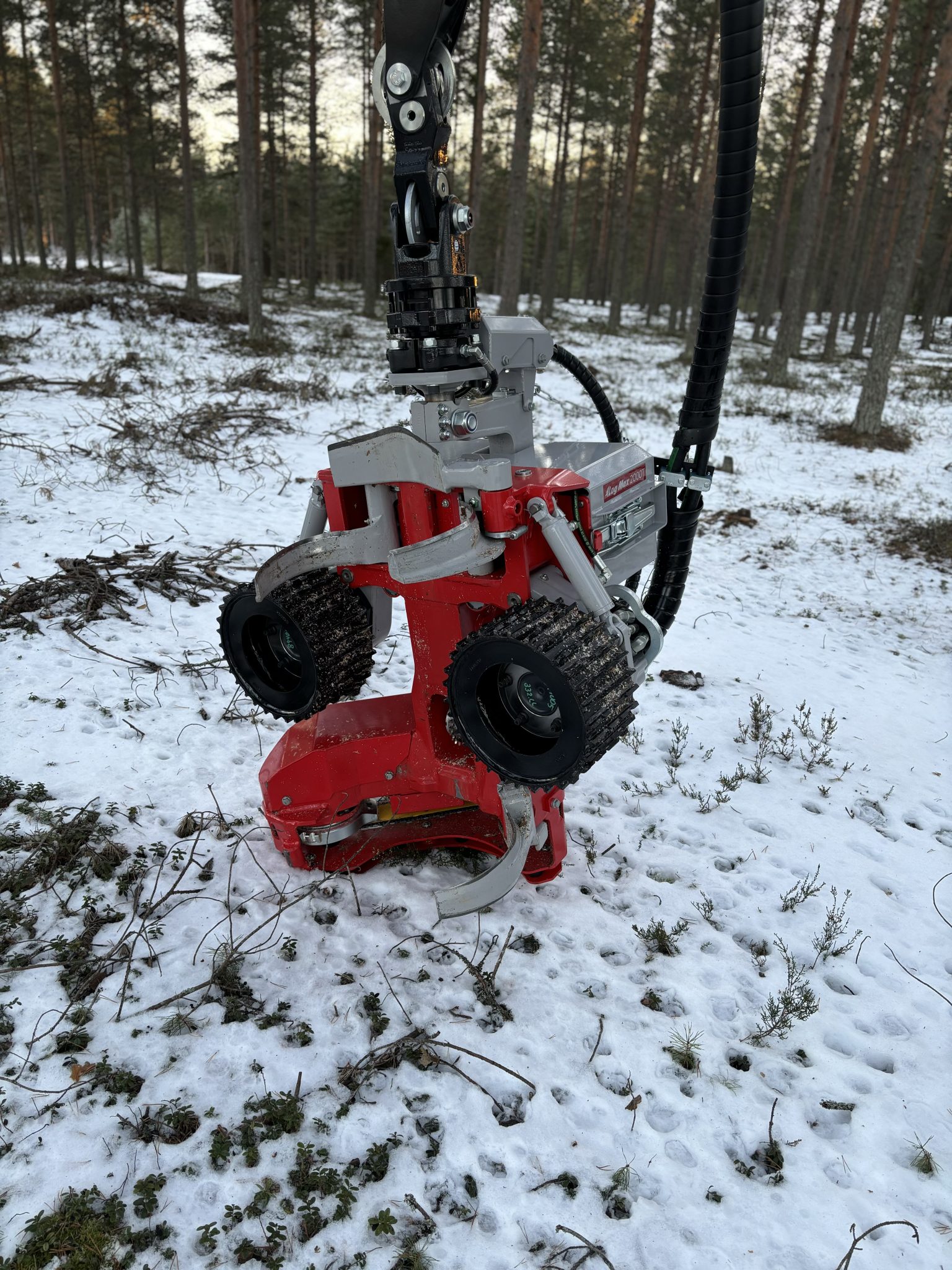

Crane and harvester head

The auto-leveling crane tilt, with up to 15 degrees of compensation, keeps the crane stable when driving in uneven terrain.

Choose between the Keto 42 or Logmax 2000T, both fully compatible with all our bucking systems.
For added protection, equip your machine with stump treatment to prevent the spread of root rot.

5. Vimek 470 Bucking system scaled aspect ratio 1000 700

Bucking system

The bucking system is available in three different levels depending on your needs, always well integrated with the machine’s control system, which makes the machine smart and easy to handle.

Stay connected with Vimek connect.

The operator can easily start the diesel heater remotely via phone (iPhone or android) or connect the machine for troubleshooting and real-time access to operational data.

6. Vimek 470 Agile with low ground impact aspect ratio 1000 700

Agile with log ground impact

A compact harvester designed for selective thinning, capable of working within forest stands by maneuvering between the trees. This approach reduces the need for wide extraction trails.

Making it effortless and smooth to navigate dense forests thanks to DSS (Dual Steering System) – middle joint steering, combined with front axle steering allowing 72-degree steering angle.

Front and rear differentials ensure excellent traction in tough terrain. With two gears and a top speed of 18 km/h, the Vimek 470 delivers both precision and efficient transport.

4WD or 6WD

4WD or 6WD

Choose four-wheel drive for a smooth and agile machine, or six-wheel drive for maximum stability and ground-bearing capacity.

Technical specifications:

Vimek 470
Dimensions
Width
2160/2300mm (500/600)
Length
7850mm (min)
Height
2950mm (may vary with equipment)
Wheelbase
2670mm
Ground clearance
480mm (may vary with equipment)
Weight
4WD 6500 kg
6WD 7300 kg
Steering angle middle joint
43°
Steering angle front axle
30°
Steering angle total max
73°
Engine
Cat
C2.2 DITAAC EU Stage V
Power
55.4kW
Torque
270Nm@1600 rpm
Utsläppsstandard
EU Steg V
Utsläppsstandard
EU Steg V
Fuel tank
65l +(60l)
Crane
Mowi
P50
Reach
6,3m
Lifting torque
43kN
Mowi
P61T
Räckvidd
7,5 m
Brutto lyftmoment
52 kNm
Mowi
P61T
Räckvidd
7,5 m
Brutto lyftmoment
52 kNm
Hydraulic system
Pump
Load-sensing pump with power control
Pressure
25-260 bar
Flow
140l/min at 1900 rpm
Electrical system
12V
Battery
142Ah
Alternator
120A
Bucking system
Dasa Forester
Machine display
12.1”
Harvester head
Keto 42, Cutting dia. max 42cm, 18” blade. Color marking (1 color)
Logmax 2000T, Cutting dia 41cm
ISO-testad, ROPS, OPS, FOPS
Forester bucking system
3 levels
Vimek-Dasa H50
Vimek Dasa H60
Vimek Dasa H70
Transmission
Hydrostatic mechanical
Gear 1 0-9km/h
Gear 2 0-18km/h
Traction force 75kN
Diff lock front axle
Diff lock rear axle
Options
Cabin and worklights
Wheels
Hydraulics
Electrical pumps
Fire suppression
Control system
Chassies crane side
Crane and harvester head
Accessories
