1. 610.4 aspect ratio 952 792

Vimek 610.4

Fourth generation of the popular forwarder

Vimek 610.4 is our 6-wheel mid-size forwarder, a compact and efficient forwarder, ideal for first thinning.

With low ground pressure and excellent maneuverability, it protects the forest floor.

Despite its small size, it delivers impressive load capacity and performance.

2. Working environment scaled aspect ratio 1000 700

Working environment

Compact yet comfortable.

The cabin is cleverly designed to offer maximum comfort despite the machine’s compact size.

Equipped with a simple and user-friendly control system, the operator has full control over both the machine and the crane.

Multiple driving modes makes it easy to adjust performance for transport, forwarding, or fuel efficiency, depending on the task and terrain.

Wireless connectivity via the WCB module allows settings to be adjusted directly from your phone or computer.

3. Engine and transmission scaled aspect ratio 1000 700

Engine and transmission

Vimek 610.4 is equipped with a powerful CAT 55kW Stage V engine with no DEF fluid required.

Combined with a modern hydrostatic transmission, it delivers strong performance, high productivity, and low fuel consumption.

The result? A cost-effective machine perfect for smart and small-scale forestry.

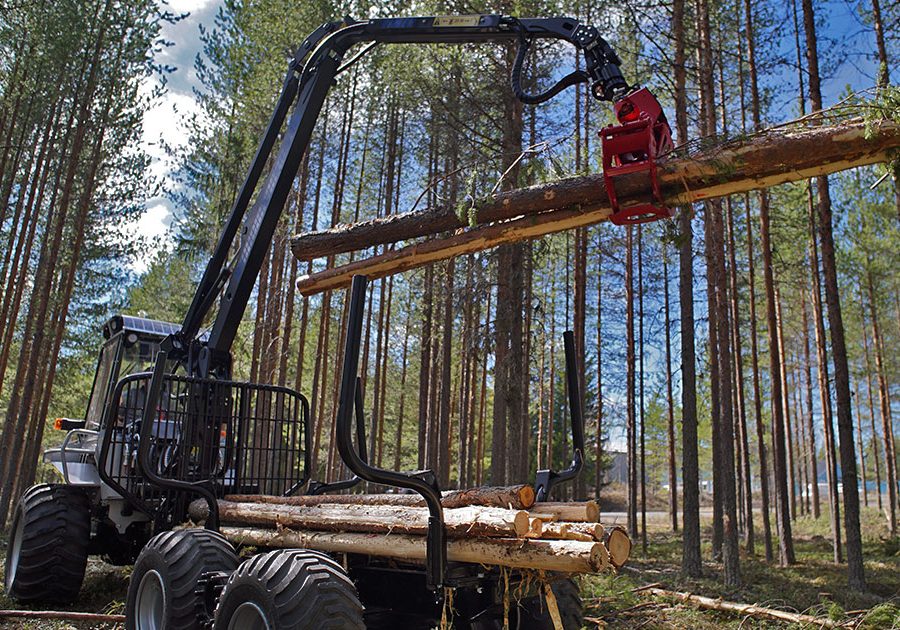

4. Crane aspect ratio 1000 700

Crane

With the P25 crane, Vimek 610.4 handles surprisingly large timber loads. Its smart balance between size and capacity makes it an exceptionally efficient choice for small-scale forestry.

For added comfort, the machine is also available with a crane damping system for smoother lifting and rotation.

610.4 aspect ratio 1000 700

Load capacity

With its well-balanced trailer and a load capacity of 5,000 kg, the Vimek 610.4 delivers remarkable performance for its size.

Equipped with a load-sensing hydraulic system, the machine automatically adjusts hydraulic power based on demand. This ensures smooth and responsive crane movements, efficient loading, and optimized fuel consumption, giving operators both precision and control when working in challenging thinning conditions.

6. Agile with low ground impact scaled aspect ratio 1000 700

Agile with log ground impact

Vimek 610.4 is the compact forwarder built for gentle thinning in sensitive forests. With low ground pressure and agile handling, it leaves minimal impact while easily navigating tight stands.

Easy to operate and simple to maintain – the perfect choice for forest owners who want to take thinning into their own hands.

Vimek 610.4, a forwarder that makes an impression without leaving its footprint.

Technical specifications:

Vimek 610.4
Technical specifications
Motor
CAT C2,2T CRDI 55 kW
Utsläppsstandard
EU Steg V och ES EPA Nivå 4f
Utsläppsstandard
EU Steg V och ES EPA Nivå 4f
Transmission
Hydrostatic / mechanical
Dimensions
Length
Standard 6,90 m (load length 3,30 m, loading area 1,85 m²)
Long 7,60 m (load length 4,00 m, loading area 1,65 m²)
Width
1,90 m or 2,00 m
Weight incl. crane
4910 Kg
Loading capacity
5000 kg
Crane
Model
Vimek - Mowi P25
Vimek - Mowi P25T (option)
Max. reach
5,20 m
6,55 m (Mowi P25T)
Lifting capacity
5,20 m, 400 kg
Gripping area
0,16 m²
Accessory clamshell bucket
Weight
130 kg
Max. opening
1300 mm
Speed
50 mm
Volume
125 liters
Options
Cabin and worklights
Wheels
Hydraulics
Electrical pumps
Fire suppression
Control system
Chassies crane side
Crane
Accessories
