The Vimek harvester

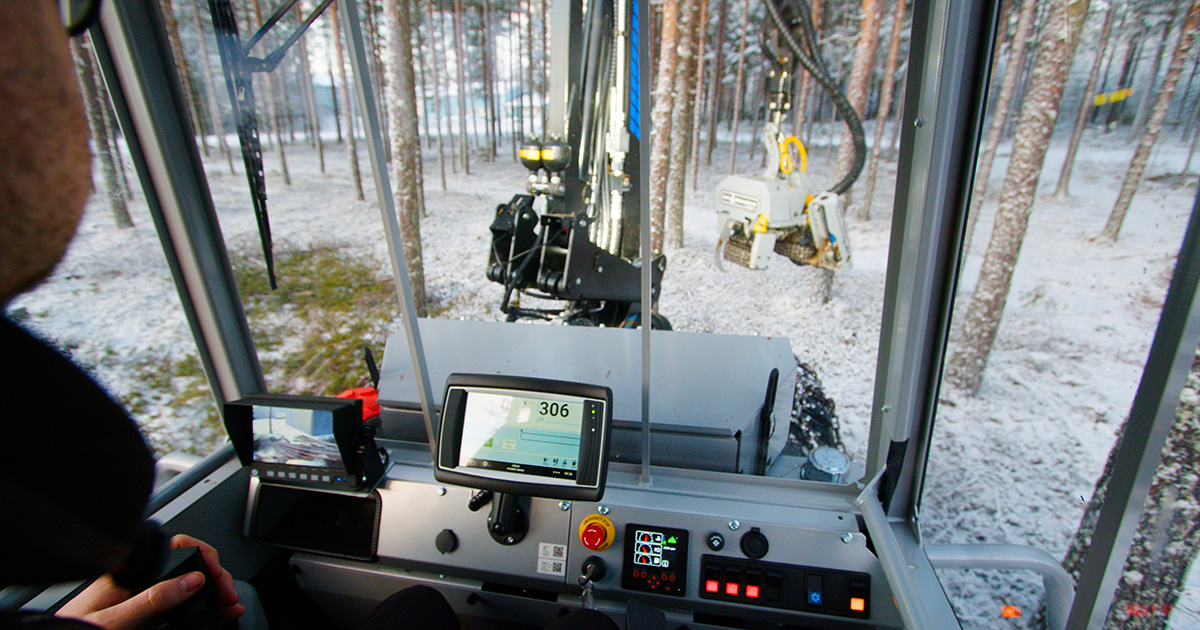

A new generation Vimek harvester equipped with a powerful Common Rail engine. The steering front axle offers alternative widths of the machine. Improved environment for the operator thanks to rubber mounted cabin, new and modern display and mini joysticks as options contribute to a comfortable cabin.
Low fuel consumption and low investment costs for good total economy. Extremely easy to manoeuvre, thanks to the unique dual steering function. Vimek 404 SE can also be equipped with different crane tip attachments – for example Vimek clamshell bucket for ditch clearing or our felling head for brush clearing under electric power lines.
| Vimek 404 SE | |
| Technical specifications | |
| Motor | CAT C2,2T CRDI 50 kW |
| Transmission | Hydrostatic / mechanical |
| Ground clearness | 40 cm |
| Dimensions | |
| Axle width | 2,10 m |
| Length | 4,60 m |
| Weight | 4,500 Kg |
| Crane | |
| Model | Vimek – Mowi 2046 |
| Max. reach | 4,60 m |
| Harvesting head | |
| Model | Keto Forst Supreme V3 Keto Forst Xtreme (option) |
| Max. cutting diameter | 300 mm |
| Weight | 269 kg 300 kg (Xtreme) |
| Motor | 10 cc |
| Bucking system | |
| Models | DASA H50/H70 |
| Accessories | |
| Clamshell bucket | |
| Weight | 130 kg |
| Max. opening | 1300 mm |
| Speed | 50 mm |
| Volume | 125 liters |
| Technical data | click here |
| Vimek C12 - Thinning head | |
| Weight | 160 kg |
| Diameter | 795 mm |
| Speed | 1100 rpm |
| Technical data | click here |
Vimek 404SE
